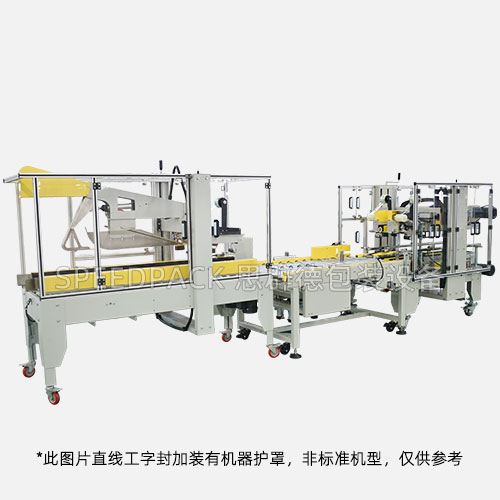

Straight-Line Automatic H-Seal Case Sealer

Supports Customization：Customizable in color, functionality, and dimensions
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics
Product Overview：The Speed inline “H”-style case sealer is a fully integrated solution combining automatic top-flap folding, top/bottom straight-line taping, and four-corner edge sealing—all in one continuous, high-efficiency workflow. Automatic Top-Flap Folding: Carton top flaps are automatically folded prior to sealing for consistent box formation. Dual Motor-Driven Belts for Precision Alignment: Left and right motorized conveyor belts automatically center and transport cartons with exceptional stability—ensuring fast, smooth, and vibration-free operation during sealing. Simultaneous Top & Bottom “I”-Style Sealing: Applies tape in a straight-line pattern to both the top and bottom seams in a single pass. Side assist rollers press the carton’s central seam firmly during taping, preventing misalignment, gaps, or seam splitting. Cross-Rotation + Side-Push Transfer to Corner Sealer: After primary sealing, cartons are rotated 90° via a cross-rotation unit, then gently pushed by a side-push mechanism into the corner taping station—where all four vertical edges are sealed simultaneously for reinforced structural integrity (completing the full “H”-style seal). Quick Manual Size Changeover: When switching carton sizes, operators can manually adjust the machine in under 1 minute—no tools required. Fully adjustable parameters include: Worktable height Carton width guides Carton height stops Simple, intuitive, and highly practical for mixed-SKU production environments. Operator-Safe & Ergonomic Design: Sleek, modern industrial aesthetics Integrated blade guard on tape cutters to prevent accidental cuts during operation Equipped with four heavy-duty locking casters for effortless mobility and repositioning Robust mechanical construction ensures long service life, minimal maintenance, and reliable performance under continuous operation Ideal for medium-to-high volume packaging lines requiring full-perimeter sealing, safety, and operational flexibility.

+86 17701725961

Product Video

Product Configuration

Component	Brand
PLC	SIEMENS
Pneumatic Components	SMC
Low-Voltage Electrical Components	SCHNEIDER ELECTRIC
Photoelectric Sensors	SICK
Limit Switches	OMRON
HMI Touchscreen	SIEMENS
Vacuum Generators	SMC
Vacuum Suction Cups	CHELIC

Model Specifications

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
