Automatic Case Erector

Supports Customization：Customizable in color, functionality, and dimensions
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics
Product Overview：Automatic Case Erector (Box Former with Bottom Sealing) The Essential Front-End Solution for High-Volume Packaging Lines Also known as an automatic carton forming and bottom-sealing machine, the Speed Automatic Case Erector performs a complete sequence of operations in one continuous cycle: Automatically picks and opens flat carton blanks Forms the box structure Folds the bottom flaps in a precise sequence Applies pressure-sensitive tape to securely seal the bottom Conveys the ready-to-fill carton directly to the downstream packing or filling station This fully automated system is designed for high-volume production environments, eliminating manual labor in carton setup. It reliably handles tasks including automatic box opening, bottom flap folding, and bottom taping—all without operator intervention. Equipped with a PLC + HMI (Human-Machine Interface) control system, the machine offers: Intuitive operation via color touchscreen Easy parameter setting and fault diagnosis Reduced need for operators Lower labor costs and minimized human error Built for integration into automated packaging lines, the Speed Automatic Case Erector significantly reduces packaging costs while improving consistency, speed, and workplace safety.

+86 17701725961

Product Video

Product Configuration

Component	Supplier / Brand
PLC	SIEMENS
Pneumatic Components	SMC
Low-Voltage Electrical Components	SCHNEIDER ELECTRIC
Photoelectric Sensors	SICK
Limit Switches	OMRON
HMI Touch Screen	SIEMENS
Vacuum Generators	SMC
Vacuum Suction Cups	CHELIC

Model Specifications

Specification / Parameter	Value
Case Opening Speed	8–12 cartons/minute
Carton Buffer Capacity	100 pcs (for cartons with height ≈1000 mm)
Compatible Carton Size Range	L: 200–450 mm × W: 150–400 mm × H: 100–350 mm
Power Supply	220/380 V AC, 1PH/3PH, 50/60 Hz
Operating Air Pressure	6 kgf/cm² (≈ 0.6 MPa)
Air Consumption	450 NL/min
Machine Dimensions (L × W × H)	2065 × 2200 × 1499 mm
Machine Weight	500 kg
Tape Width Compatibility	48–72 mm

Note: Customized design and production are available upon customer request.

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.

Related Videos

Browse all product videos

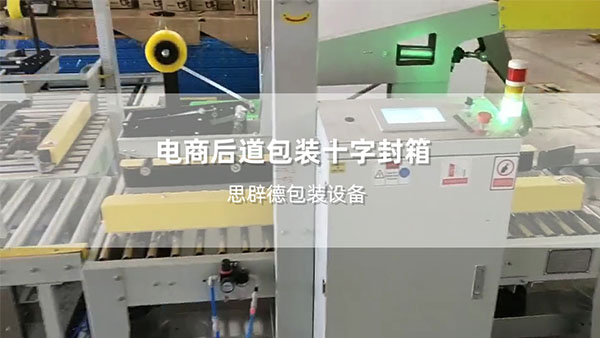

Speedpack E-Commerce End-of-Line Packaging – Automatic Cross (X-Style) Case Sealing Video
