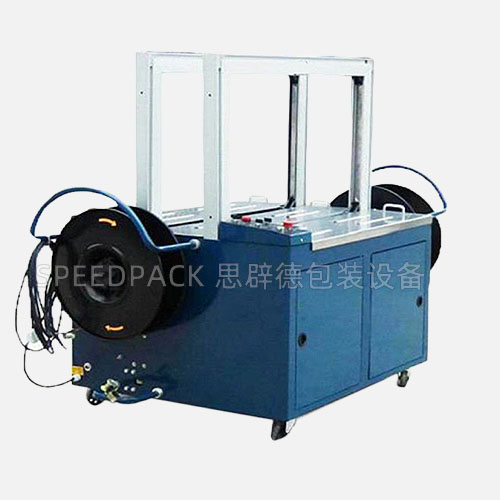

Automatic Side-Seal Strapper

Product Overview：Side-Strapping Machine，Designed specifically for large-sized items, this side-strapping machine supports both fully automated integration into production lines and standalone manual operation.It is driven by a robust system combining an electric motor, gearbox, cam mechanism, and tensioning arm, delivering high strapping tension, exceptional reliability, minimal downtime, and easy maintenance. All critical components are precision-machined using CNC-controlled equipment, ensuring smooth, stable mechanical motion, outstanding durability, comprehensive functionality, and an extended service life. An intelligent energy-saving feature automatically stops the motor immediately after strapping is completed, enhancing operational efficiency and reducing power consumption.

Supports Customization：Customization for special specifications is supported
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics

Model Specifications

Specification / Parameter	Value
Machine Dimensions	W1800 × D600 × H1800 mm
Machine Weight	280 kg
Power Supply	1PH 220 V, 50/60 Hz; 3PH 380 V, 50/60 Hz, 0.85 kVA
PP Strap Width	9, 12, 13.5, 15 mm
Table Height	Customizable to match conveyor line height
Strapping Tension Force	5–80 kg
Controller	PCB (Printed Circuit Board)
Standard Arch Frame	W850 × H600 mm
Note: Customized non-standard designs and production available upon customer request.
