Fully Automatic In-Line Rotary Arm Stretch Wrapper with Top Sheet Covering System
Fully Automatic In-Line Rotary Arm Stretch Wrapper with Top Sheet Covering System

Fully Automatic In-Line Rotary Arm Stretch Wrapper with Top Sheet Covering System

  • Supports Customization：Customizable on Demand
  • Industries Served：Food, Beverages, Chemicals, Paper Manufacturing, and Building Materials.
  • Product Overview：Fully Automatic In-Line Cantilever Stretch Wrapper, Designed for high-volume production and highly automated logistics environments in modern enterprises. Customizable Packaging System: Tailored to your specific product dimensions, pallet types, and factory layout—ensuring optimal integration into existing workflows. End-to-End Automation: Automatically handles the entire packaging sequence—load detection, stretch wrapping, top-sheet covering, pallet centering, and conveyance—with zero manual intervention. Flexible Conveyance Options: Integrated conveyor system available in multiple configurations: roller, belt, chain plate, or chain-driven, to suit diverse load characteristics. Automatic Film Feeding & Cutting Unit: Enables true unmanned operation, reducing labor costs and improving consistency. In-Line Wrapping After Palletizing: Secures loads immediately after stacking to prevent shifting or collapse during transport. High Throughput: Standard model achieves >50 pallets/hour; high-speed version reaches up to 70 pallets/hour. Ideal for Oversized & Heavy-Duty Loads: Engineered for extra-large and ultra-heavy cargo that exceeds standard equipment capabilities. Modular Design – Six Core Components: Cantilever stretch wrapping unit Four-post gantry frame (for structural stability) Powered conveyor line Automatic film feed & cut-off system Top-sheet covering unit Centralized PLC control system
Contact us
+86 17701725961
Model Specifications
Specification / Parameter Value
Stretch Film Roll Dimensions Length: 500–1200 mm × Width: 500–1200 mm
Max. Wrapping Height 1800 mm
Packaging Throughput 20–30 pallets/hour
Turntable Speed 0–20 rpm, frequency-controlled (adjustable)
Conveyor Line Height 450 mm
Pneumatic System Operating Pressure 0.4 – 0.7 MPa
Film Carriage Travel Speed 3 m/min
Top-Sheet Film Stretching Speed 12 m/min
Top-Sheet Coverage Size Width: 1800 mm, Length: Adjustable
Film Cutting Method Instantaneous heated wire cut-off
Control System PLC + HMI Touchscreen,
fully programmable parameters
Machine Weight 1800 kg
Power Supply 3-phase, 380 V AC, 50/60 Hz, 20 A
Main Unit: 2.5 kW + Conveyor: [Specify kW]
Overall Dimensions (L×W×H) 3200 × 3800 × 3120 mm
Conveyor Load Capacity 2000 kg
Conveyor Speed 0–12 m/min (adjustable)
Support & Services
Quality Assurance, Efficient Collaboration
Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.
Quality Assurance, Efficient Collaboration
Dedicated Shipment & Rigorous Testing
We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.
Dedicated Shipment & Rigorous Testing
Premium After-Sales Service
Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
Premium After-Sales Service
Related Products
Explore more Stretch Wrapper products
Fully Automatic In-Line Turntable Stretch Wrapper with Integrated Top Sheet Dispenser
Fully Automatic In-Line Turntable Stretch Wrapper with Integrated Top Sheet Dispenser
Contact us View Details
Fully Automatic In-Line Turntable Stretch Wrapper
Fully Automatic In-Line Turntable Stretch Wrapper
Contact us View Details
Related Projects
Browse more industry case studies
Fully Automated Secondary Packaging Line for a Leading Pet Food Brand
Fully Automated Secondary Packaging Line for a Leading Pet Food Brand
Client：Yantai Zhongchong Pet Food Co., Ltd.
Results：Enables machine-based automation to replace manual labor, significantly reducing the need for human operators in secondary packaging and substantially improving operational efficiency.
Integrated Automated Packaging Line Solution for Synthetic Fiber Yarn Manufacturers
Integrated Automated Packaging Line Solution for Synthetic Fiber Yarn Manufacturers
Client：Synthetic fiber yarn manufacturer
Results：Significantly reduces manual labor required for secondary packaging and enhances operational efficiency.

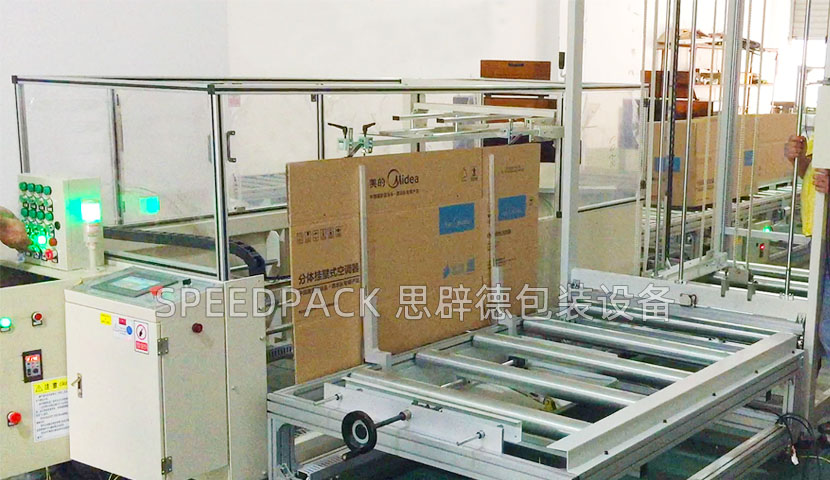

End-of-Line Automated Packaging for Midea Split Wall-Mounted Air Conditioners
