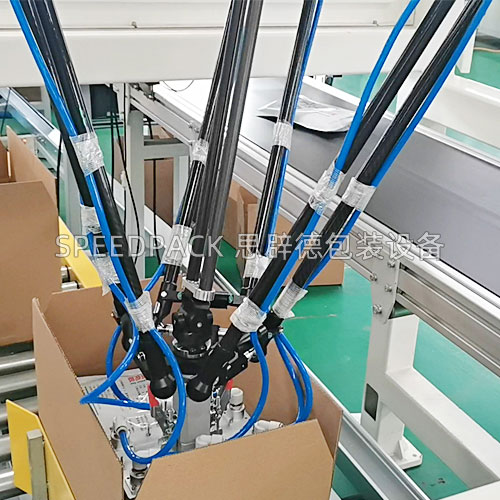

High-Speed Delta Parallel Robot Case Packer

High-Speed Delta Parallel Robot Case Packer

Supports Customization：Customizable in color, functionality, and dimensions
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics
Product Overview：Under the international standard test trajectory (25–305–25 mm), the Speed parallel delta robot achieves a stable cycle rate of up to 600 cycles per minute. Even at high speeds (>300 cpm), it maintains an exceptional repeatability of ±0.02 mm, ensuring consistent performance in precision-critical tasks. Key Technical Advantages: High-Precision Sliding Hooke Joints: Patented joint design delivers high accuracy, broad applicability, and industrial-grade durability, with verified wear life exceeding 20,000 operating hours. Robust & Low-Maintenance Architecture: Core components are engineered for easy installation, high payload capacity, and an expected service life of up to 8 years. The entire robotic arm is maintenance-free for a full year—no lubrication or joint adjustments required, thanks to its preloaded, zero-backlash structure. Flexible Configuration for Diverse Tasks: For 2D planar handling of lightweight items (e.g., sorting on a conveyor), a 2-axis high-speed delta robot can be deployed without vision systems, relying solely on precision sensors for positioning. The classic 4-axis delta robot provides 3 translational degrees of freedom (X, Y, Z) plus rotation about the Z-axis (θz). When integrated with a high-resolution machine vision system, it enables real-time recognition of target objects’ position and orientation, ensuring accurate pick-and-place even for randomly arranged parts. Ideal for Hygienic & High-Speed Industries: Specifically designed for food, pharmaceutical, and consumer goods sectors, this robot excels at high-speed assembly, transfer, sorting, and packing of small, lightweight, and irregularly arranged items.

+86 17701725961

Product Video

Product Configuration

Component	Brand
Robotic Arm	Atom Robotics / ABB
PLC	SIEMENS
HMI Touchscreen	SIEMENS
Low-Voltage Electrical Components	SCHNEIDER ELECTRIC
Photoelectric Sensors	SICK
Gear Motors	Taibang
Pneumatic Components	SMC
Vacuum Generators	SMC
Bearings	NSK

Model Specifications

Specification	Value
Maximum Packing Speed	600 pcs/min (Actual speed depends on product size, weight, and configuration)
Machine Dimensions	Customized based on product characteristics
Power Supply	220 V / 380 V, 50–60 Hz
Installed Power	Depends on the selected robotic arm
Packing Method & End-Effector Types	Standard vacuum suction cups, vacuum sponge grippers, or custom-designed end-effectors
Payload Capacity	3 kg, 5 kg, 15 kg, 25 kg

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
