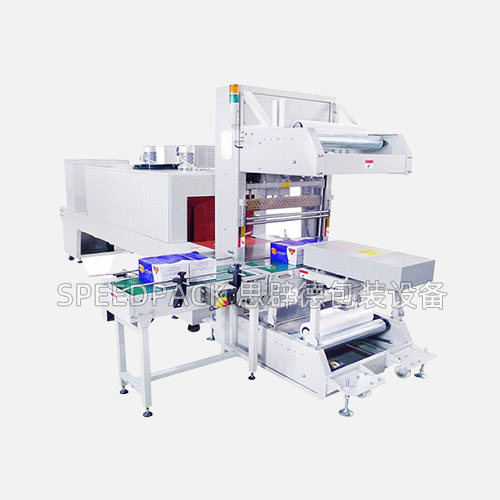

Fully Automatic High-Speed Side-Seal Shrink Wrapping Machine

Product Overview：Imported Components: Key electrical components are sourced from renowned international brands, including Siemens (Germany), Schneider Electric (France), and Omron (Japan), ensuring high reliability and performance. Simple Operation: To accommodate products of varying packaging dimensions, operators only need to adjust the handwheel—no complex settings required. This enhances operational reliability and makes the machine exceptionally user-friendly. High Speed: Depending on equipment configuration and product characteristics, the sealing/cutting speed is precisely synchronized with the shrink tunnel, enabling a packaging throughput of up to 0–60 pieces per minute. Fully Automatic & Efficient: Sealing, cutting, and heat shrinking are seamlessly integrated into a continuous automated process. The system delivers stable performance, significant labor savings, consistent packaging quality, high shrink efficiency, and broad adaptability across a wide range of products.

Supports Customization：Customization for special specifications is supported
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics

Model Specifications

Side Sealer Specifications	Parameter Values
Power Supply	380 V, 3-phase, 50 Hz, 3 kW
Seal Knife Length	500 mm
Max. Package Size	L: 0–∞ × W: 300 × H: 150 mm
Packing Speed	0–60 pcs/min
Machine Dimensions	1680 × 985 × 1660 mm
Required Air Pressure	5.5 kg/cm²
Packaging Speed (pieces/min)	8–22

Shrink Tunnel Specifications	Parameter Values
Power Supply	380 V, 3-phase, 50 Hz, 9 kW
Shrink Tunnel Internal Dimensions	L: 1000 × W: 450 × H: 250 mm
Max. Package Size	L: 500 × W: 260 × H: 150 mm
Temperature Range	0–300 °C
Machine Dimensions	L: 1300 × W: 750 × H: 1550 mm
